ARP - Lighting Relays Panels - Overview
nLight ARP - Lighting Relays Panels 2- Typical Connections Diagram |
 |
|---|

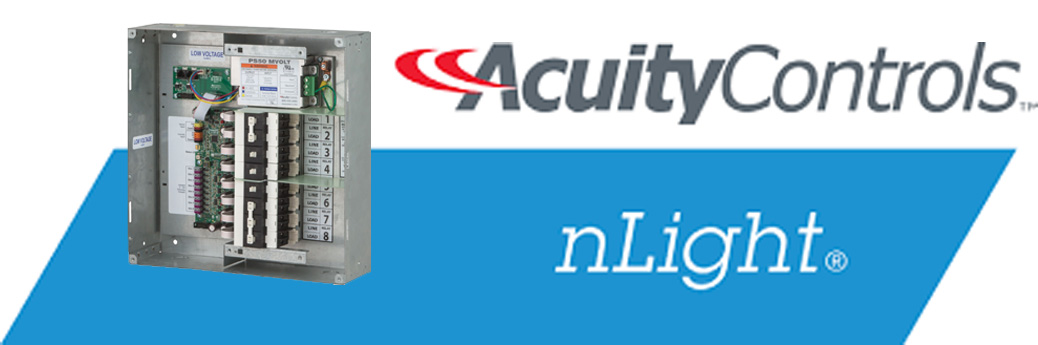

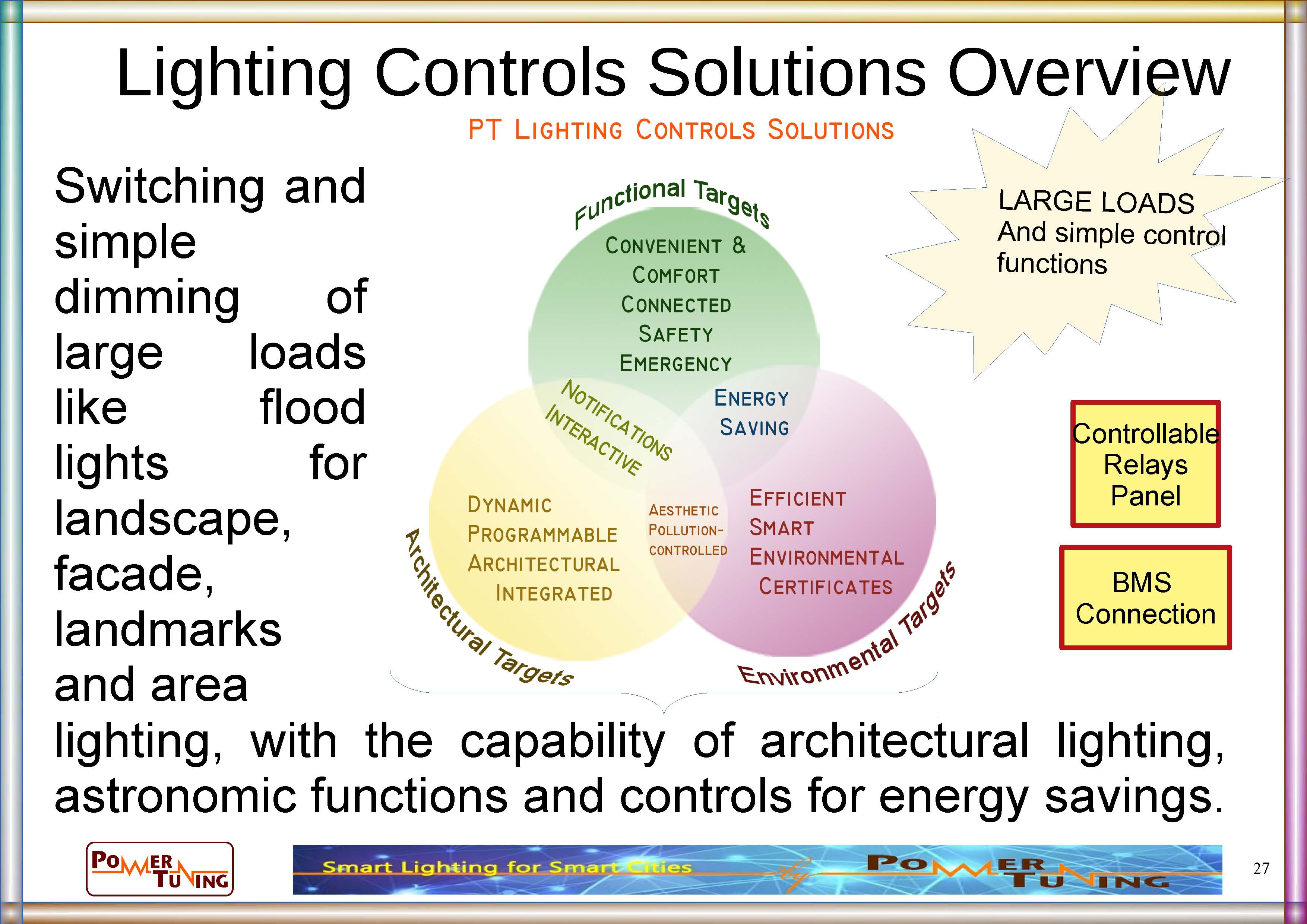

For large lighting loads, e.g. outdoor area lighting applications or big indoor spaces, the nLight Relay Panel family delivers cost-effective 0-10V dimming and switching for your building design
needs. The panel communicates with an nLight network and supports up to 128 digital devices per nLight
control zone. Offering a full range of panel sizes, the nLight Relay Panel is ideal for spaces that require full
circuit control, with the optional flexibility of configuring single pole relays into a two or three-pole relays in
the field.
Also included on each panel is a programmable input that can be connected to a photocell, for example,
and a separate dry contact “alarm” input that overrides all relays until the contact is released.

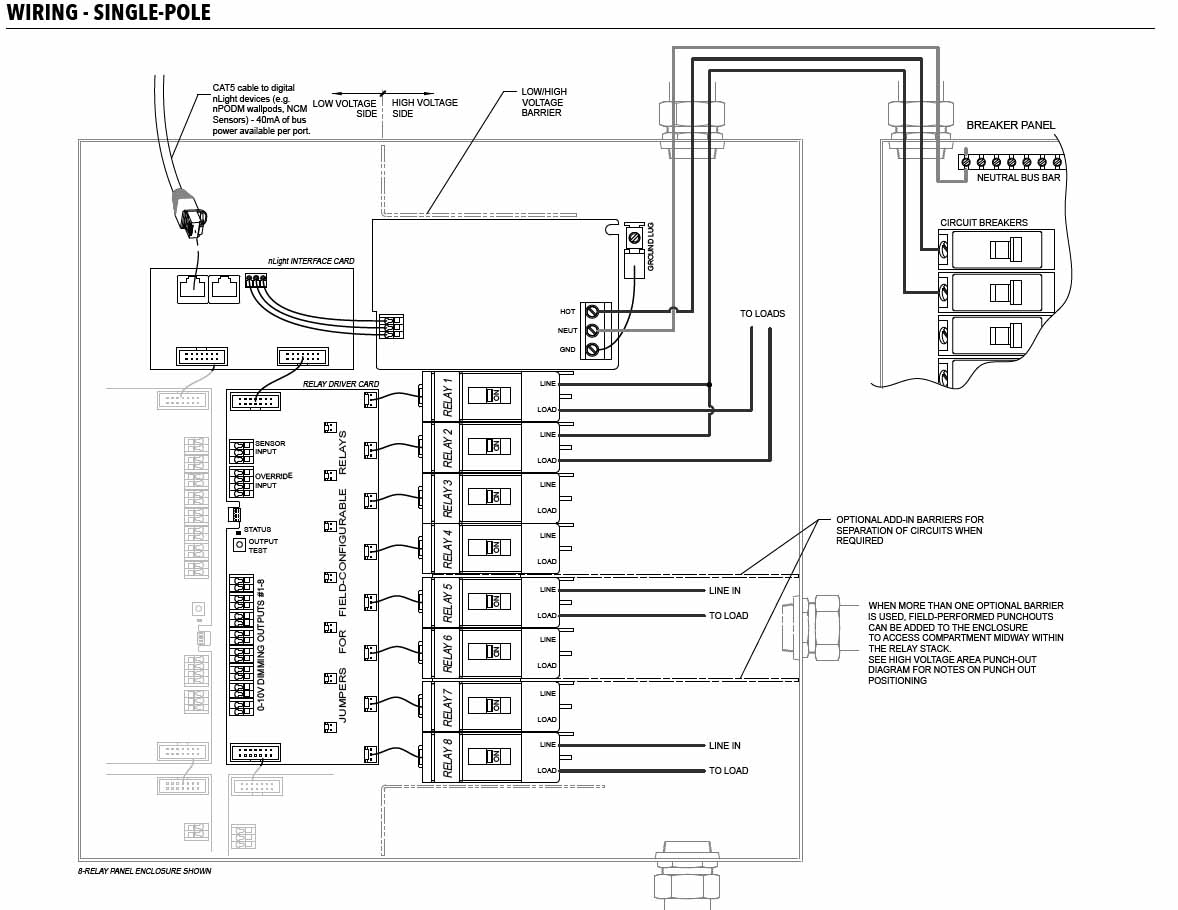

2- Typical Connections Diagram

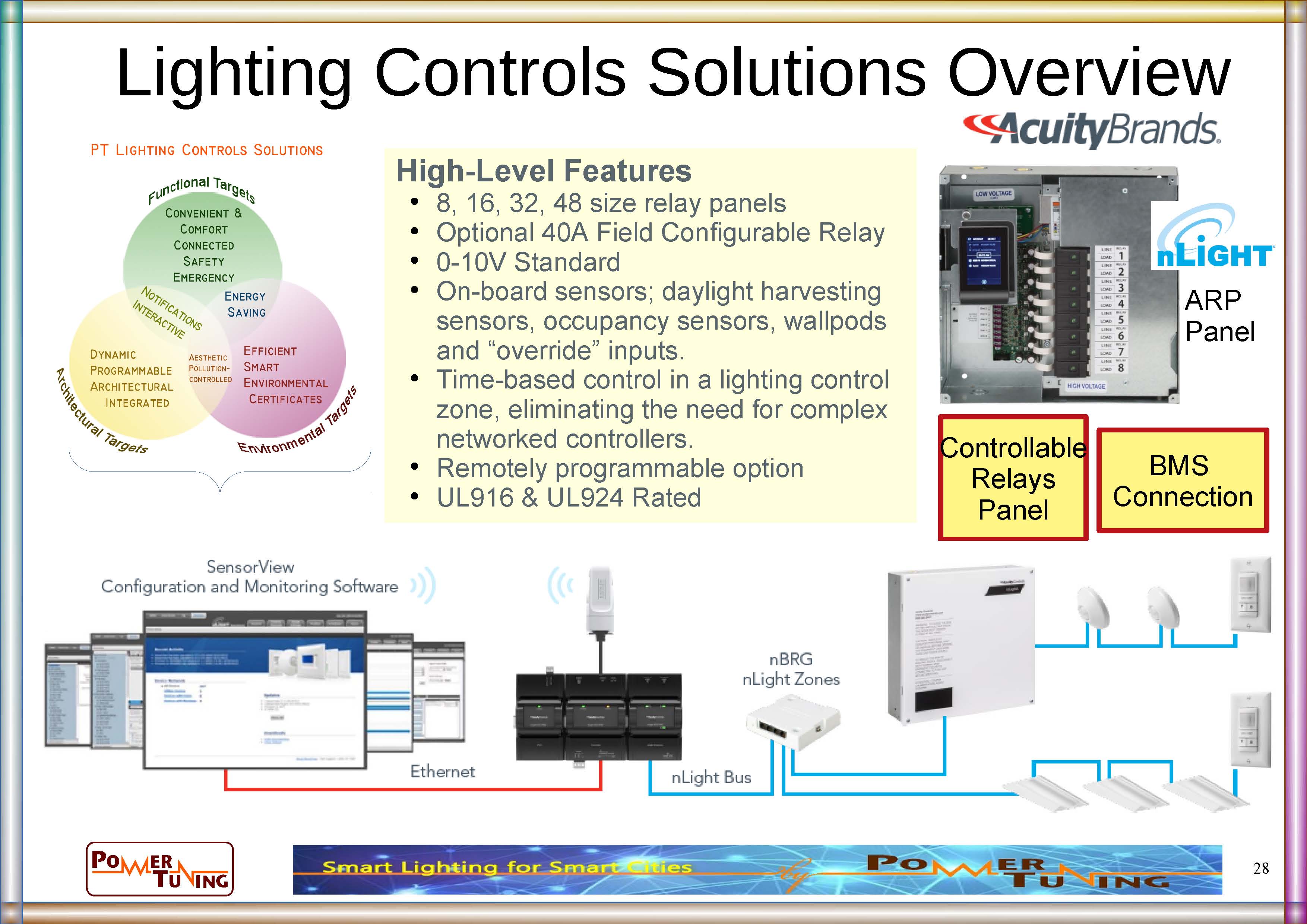

3- Key Features

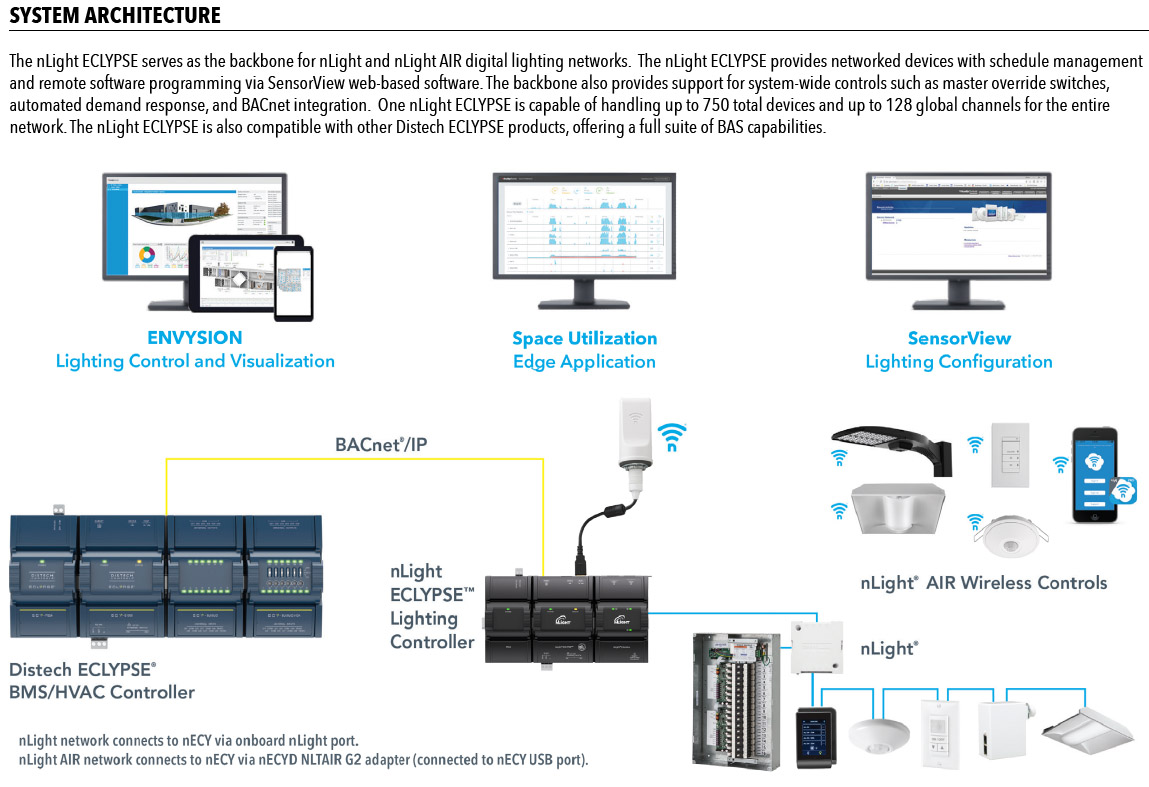

4- IP & Building Management Interface for nLight Networks
5- Link for Supplier's Product Page
