Stand-Alone Advanced Controller - Overview

CPelectronics LEGRAND - Vitesse Plus HW

1- When to use?

2- Wiring Diagram

3- Key Features

4- Sample of Pre-set program

5- Link for Supplier's Product Page

For applications with Large Areas or several scenes are needed, stand-alone system.

Cpelectronics Legrand - Vitesse Plus hard wired - stand-alone lighting control module with switching and DALI channels

1- When to use?

For applications with several circuits to be dimmed or switched, with the ability to connect sensors for automation and energy savings. Switches and scenes selectors can be used, but with no need for connecting to building systems. It can control several rooms, large areas or applications with different lighting scenes.

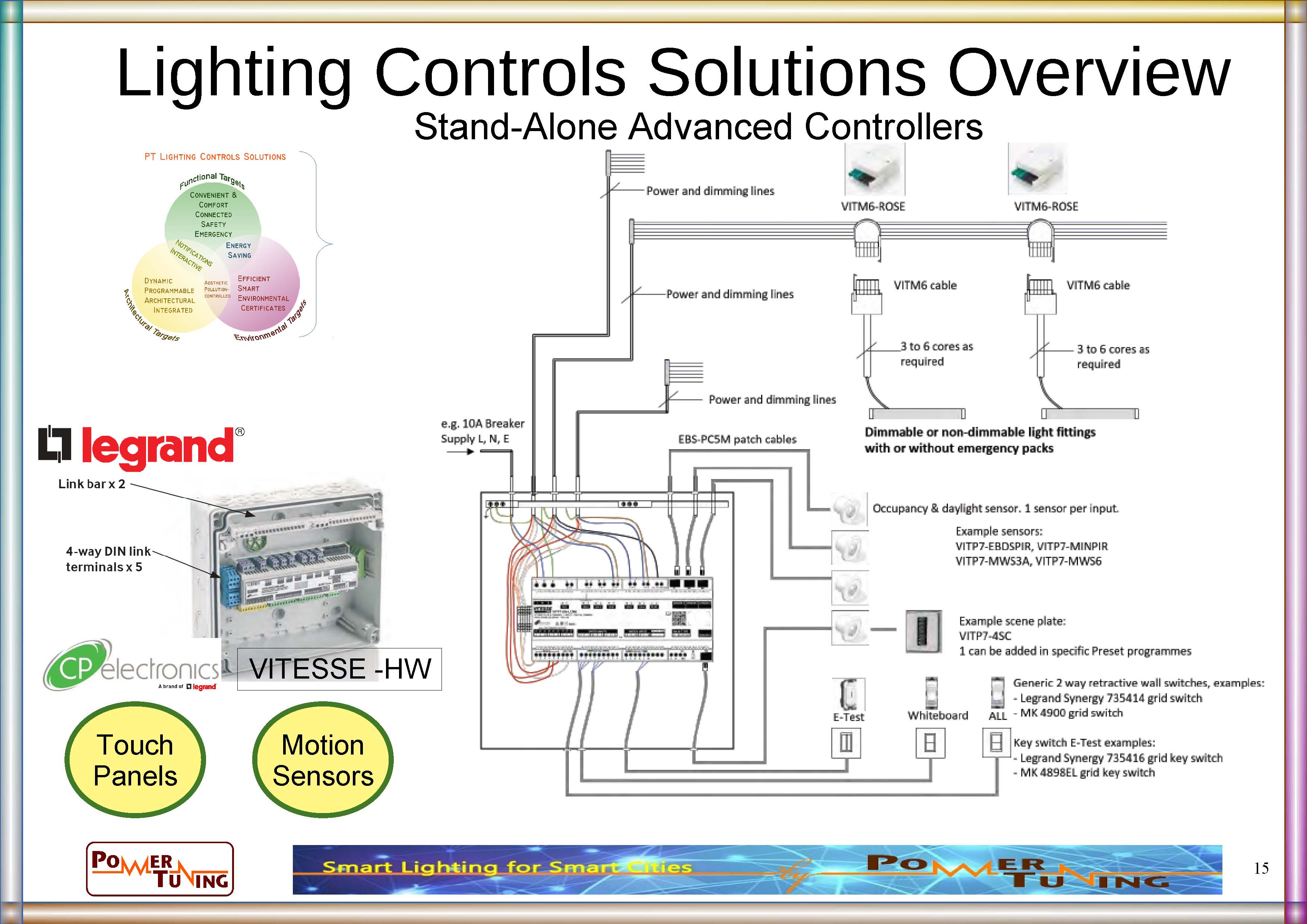

2- Wiring Diagram

Vitesse Plus HW - Schematic Diagram

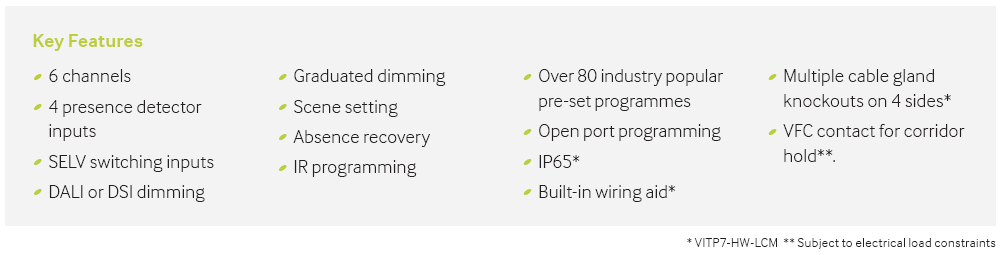

3- Key Features

Key Features for Vitesse Plus Lighting control stand-alone module Cpelectronics Legrand

4- Sample of Pre-set Program

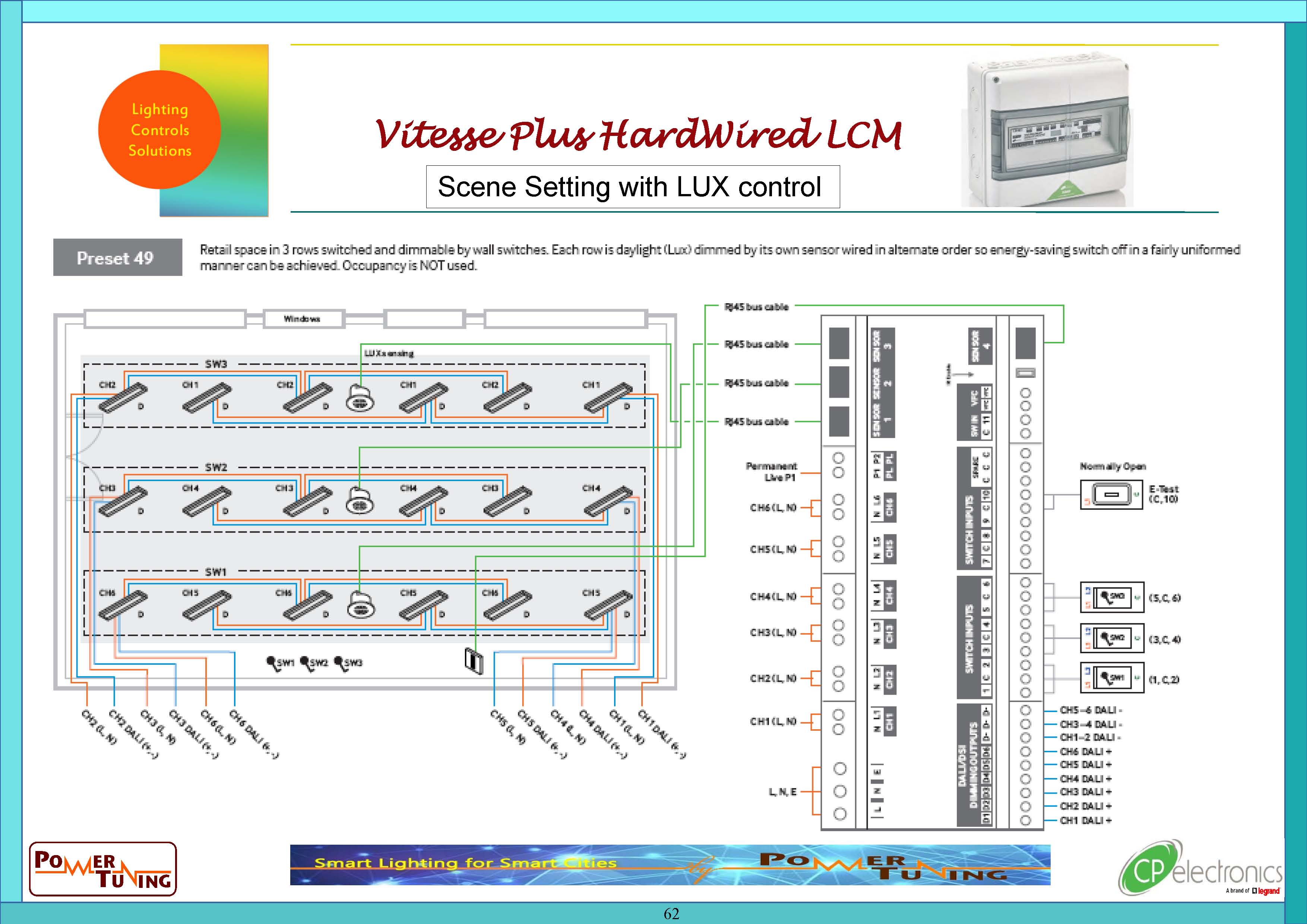

Wiring for a scene setting with lux control pre-set program

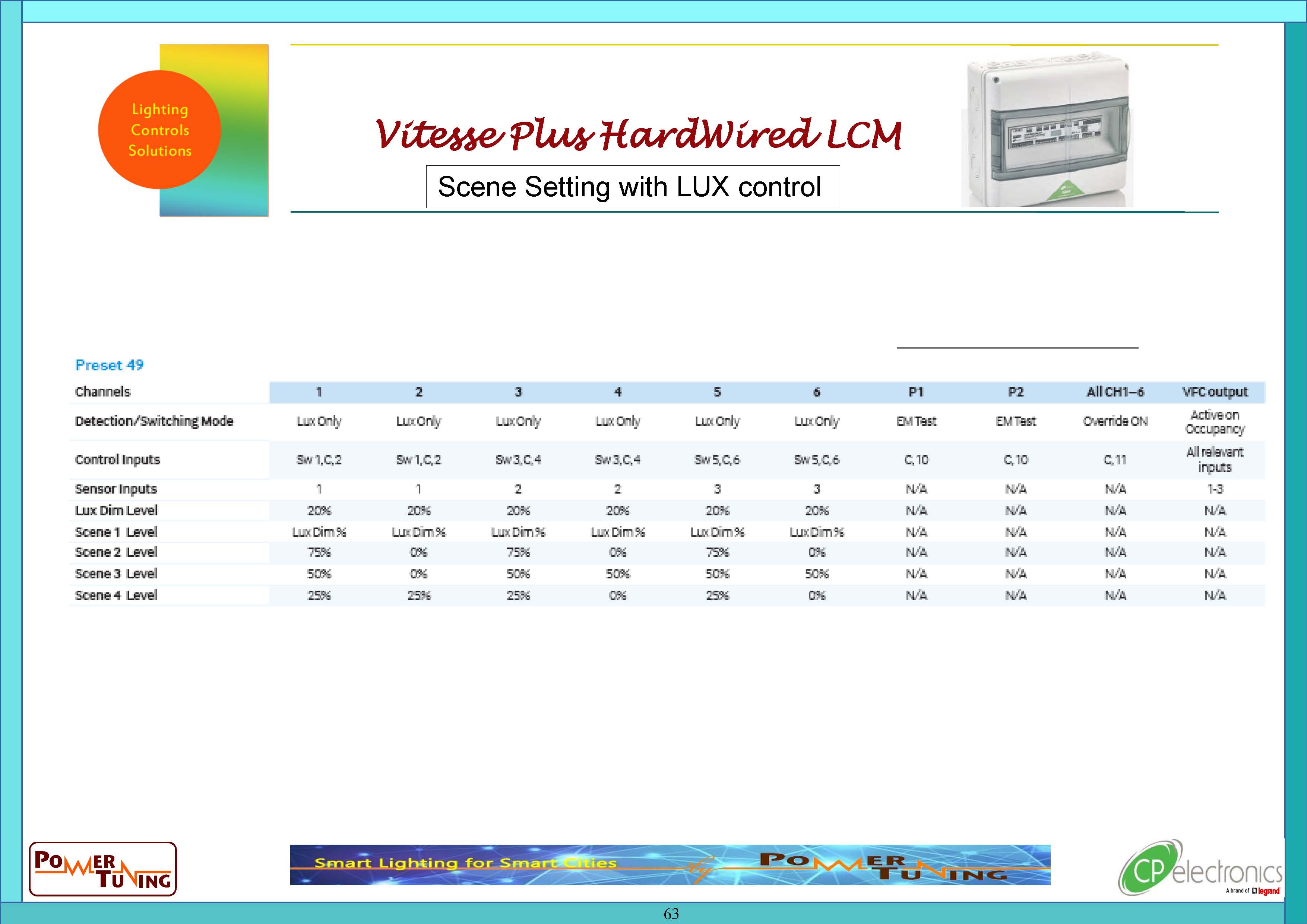

Pre-defined programming for a scene setting with lux control pre-set program

5- Link for Supplier's Product Page
