Lighting Technologies & Controls: Lighting Catalogues

LIGHTING PRODUCTS CATEGORIES

Components & Lighting Control Systems

Stand-Alone Programmable Detectors - Overview

CPelectronics LEGRAND - PRM Detectors

1- When to use?

2- Detection Range

3- Main Parameters

4- Sample of Timing Graph - DALI Dimmable versions

5- Link for Supplier's Product Page

Stand-alone detectors

1- When to use?

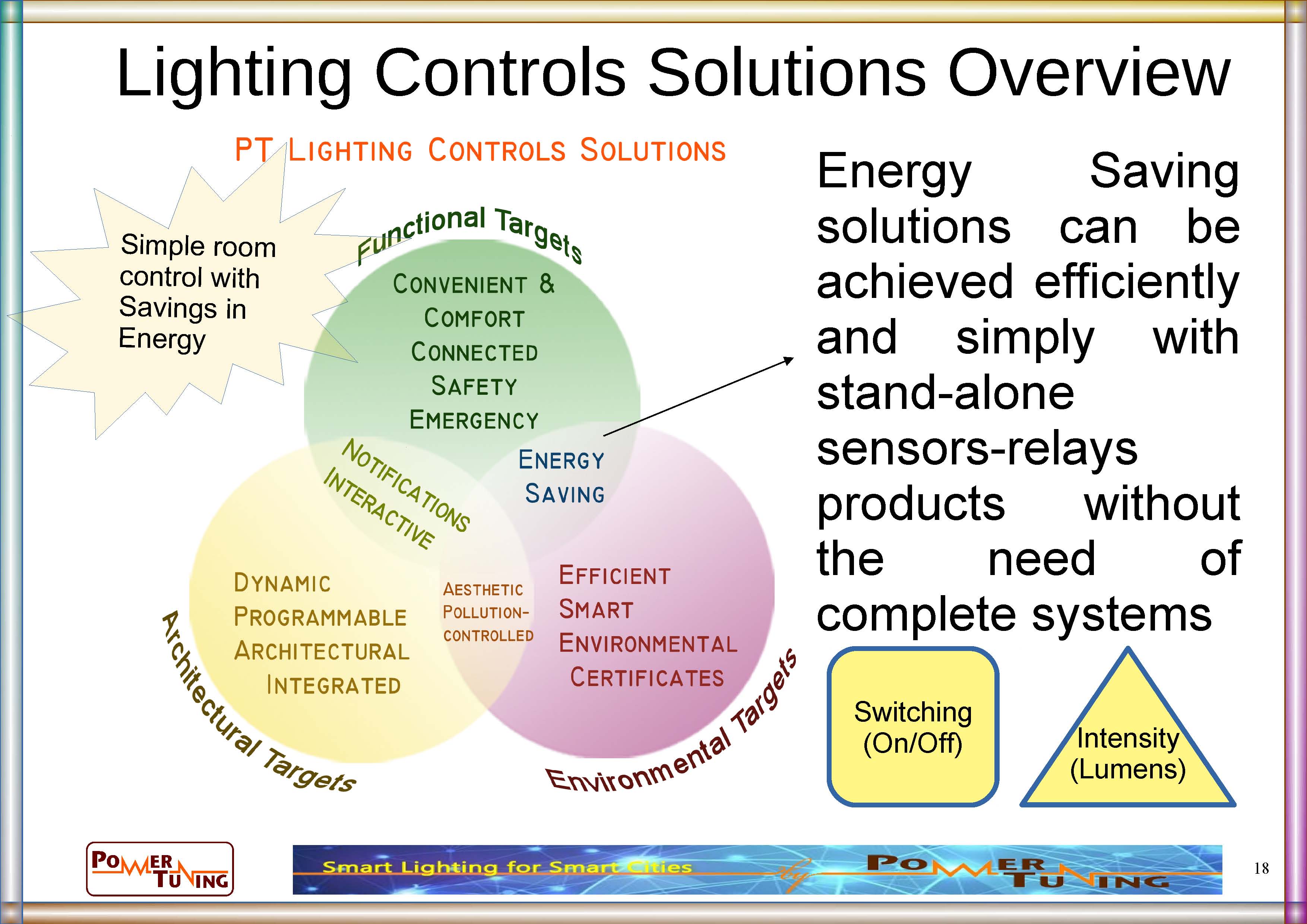

Energy Savings are the main target with no need for connecting to building systems, with the minimum cost. It controls single rooms or definite areas.

Energy Savings are the main target with no need for connecting to building systems, with the minimum cost

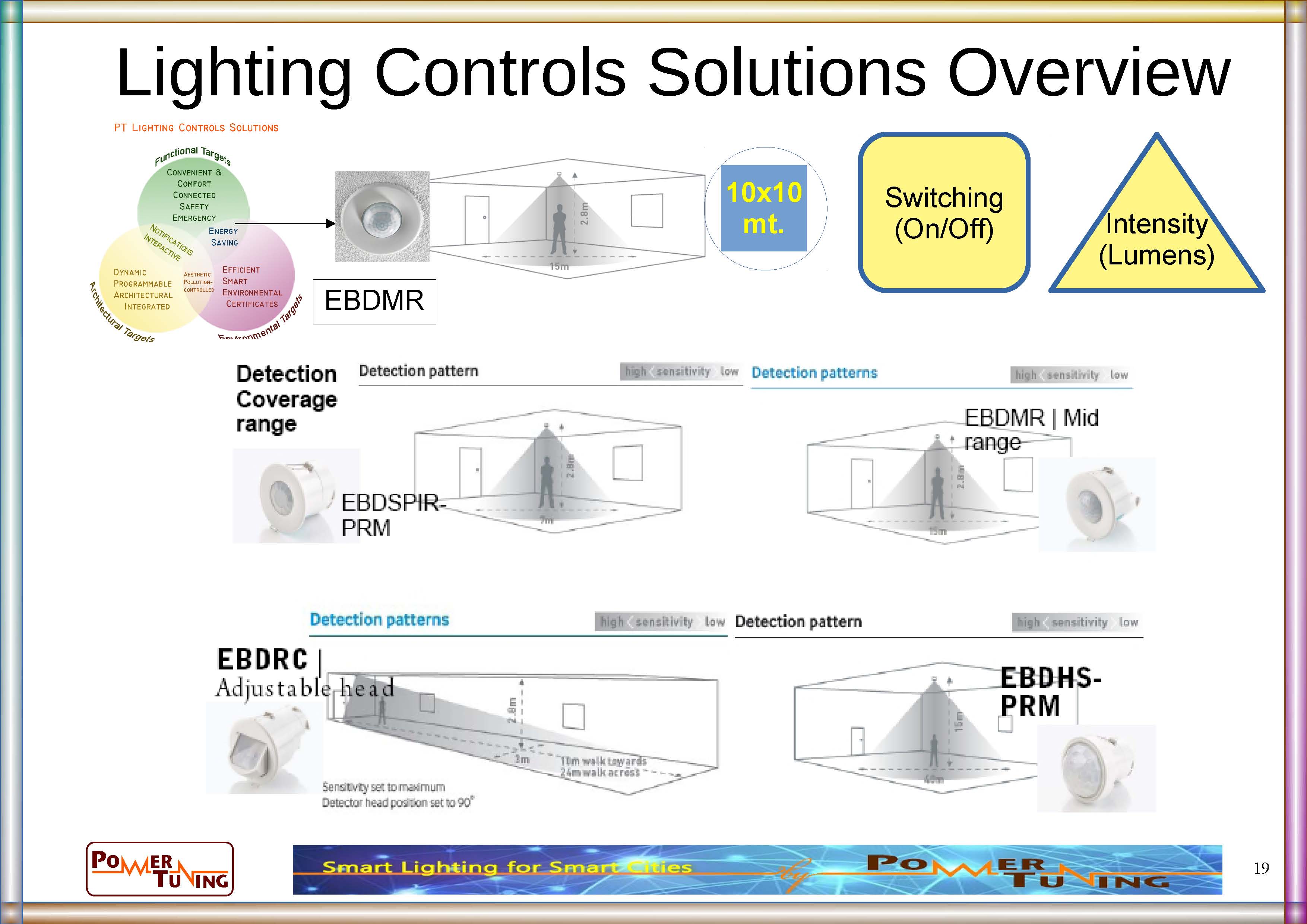

2- Detection Range

Detection area ranges from standard to mid range to high ceiling range. On the other hand, different technologies detection methods either PIR or Microwave results in different detection range shape and amplitude.

Detection range from standard to mid range to high ceiling range. On the other hand, different technologies detection methods either PIR or Microwave results in different detection range shape and amplitude.

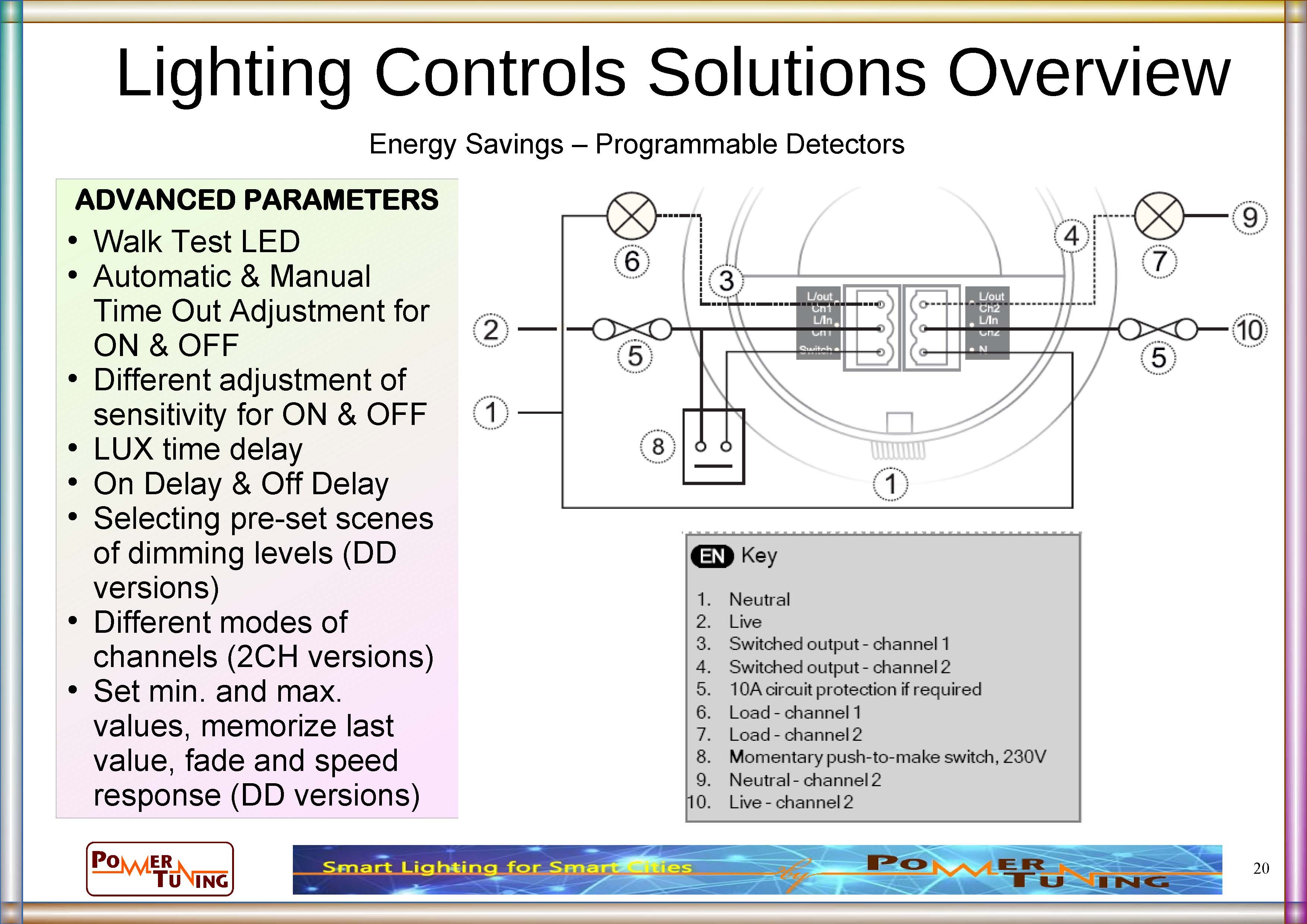

3- Main Parameters

Many programmable parameters; whether modes or adjustments are available in most types. In addition, different versions for specific use, or circuiting control options are available.

Many Programmable parameters; wether modes or adjustments are available in most types. In addition, different versions for specific use, or circuiting control options are available.

4- Sample of Timing Graph - DALI Dimmable versions

Sample of time graph using the DALI version

5- Link for Supplier's Product Page
