DALI Addressing Controller - Overview

CPelectronics LEGRAND - RAPID DALI Module

1- When to use?

2- Wiring Diagram

3- Key Features

4- Sample of using DALI LCM in a Multi-Purpose Hall

5- Link for Supplier's Product Page

For applications with Large Areas or several scenes are needed, stand-alone system.

Cpelectronics Legrand - Vitesse Plus hard wired - stand-alone lighting control module with switching and DALI channels

1- When to use?

For applications with different lighitng scenes with overlapped fixtures groups, with the ability to connect sensors for automation and energy savings. Switches and scenes selectors can be used, with scalability possibility of connecting to other modules, and can connected to the BMS, and an EMS. It can control large halls or exhibition spaces with different lighting scenes.

For applications with several circuits to be dimmed or switched, with the ability to connect sensors for automation and energy savings. Switches and scenes selectors can be used, but with no need for connecting to building systems.

2- Wiring Diagram

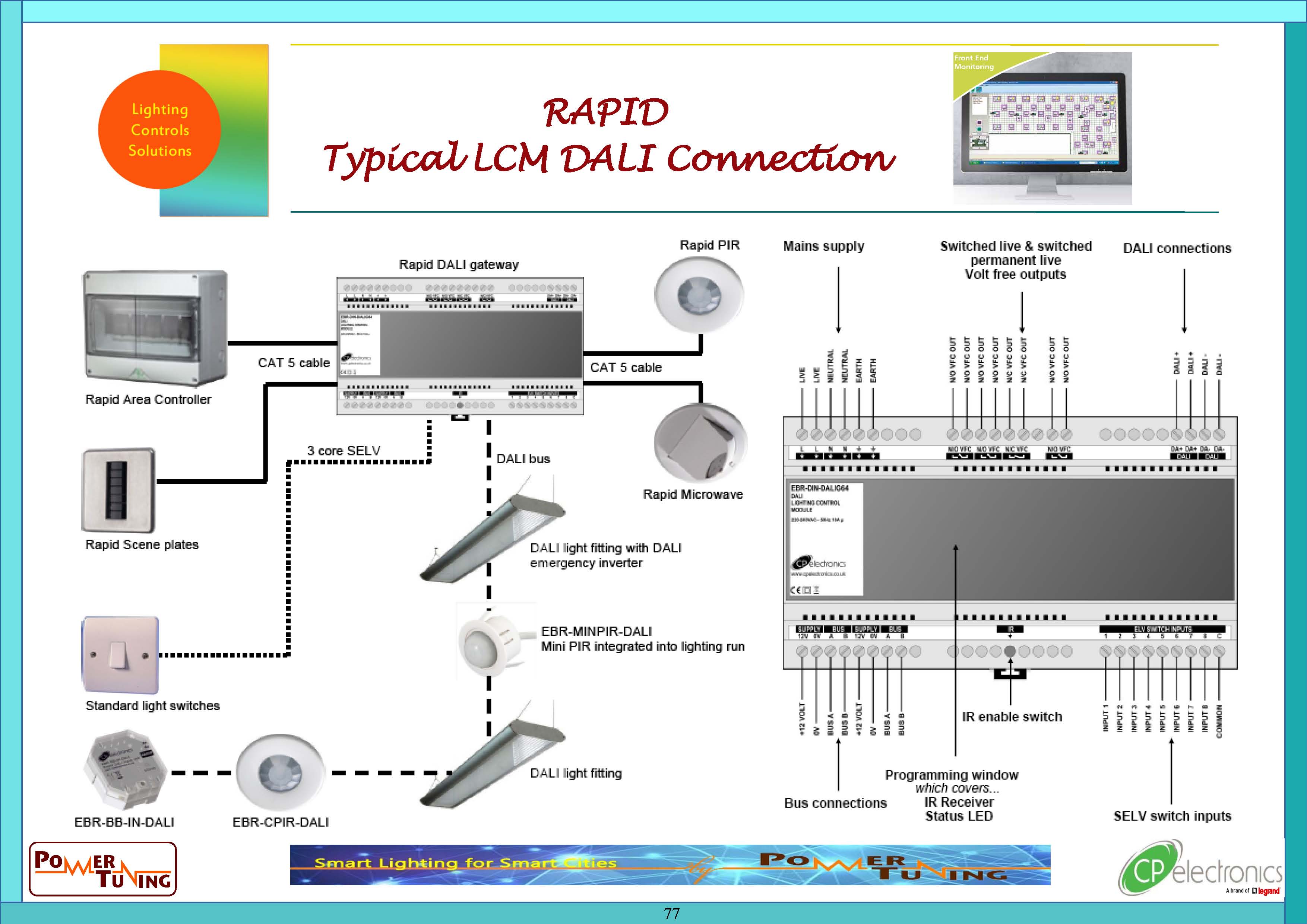

RAPID DALI Lighting control module with 2 DALI channels - Wiring Diagram

3- Key Features

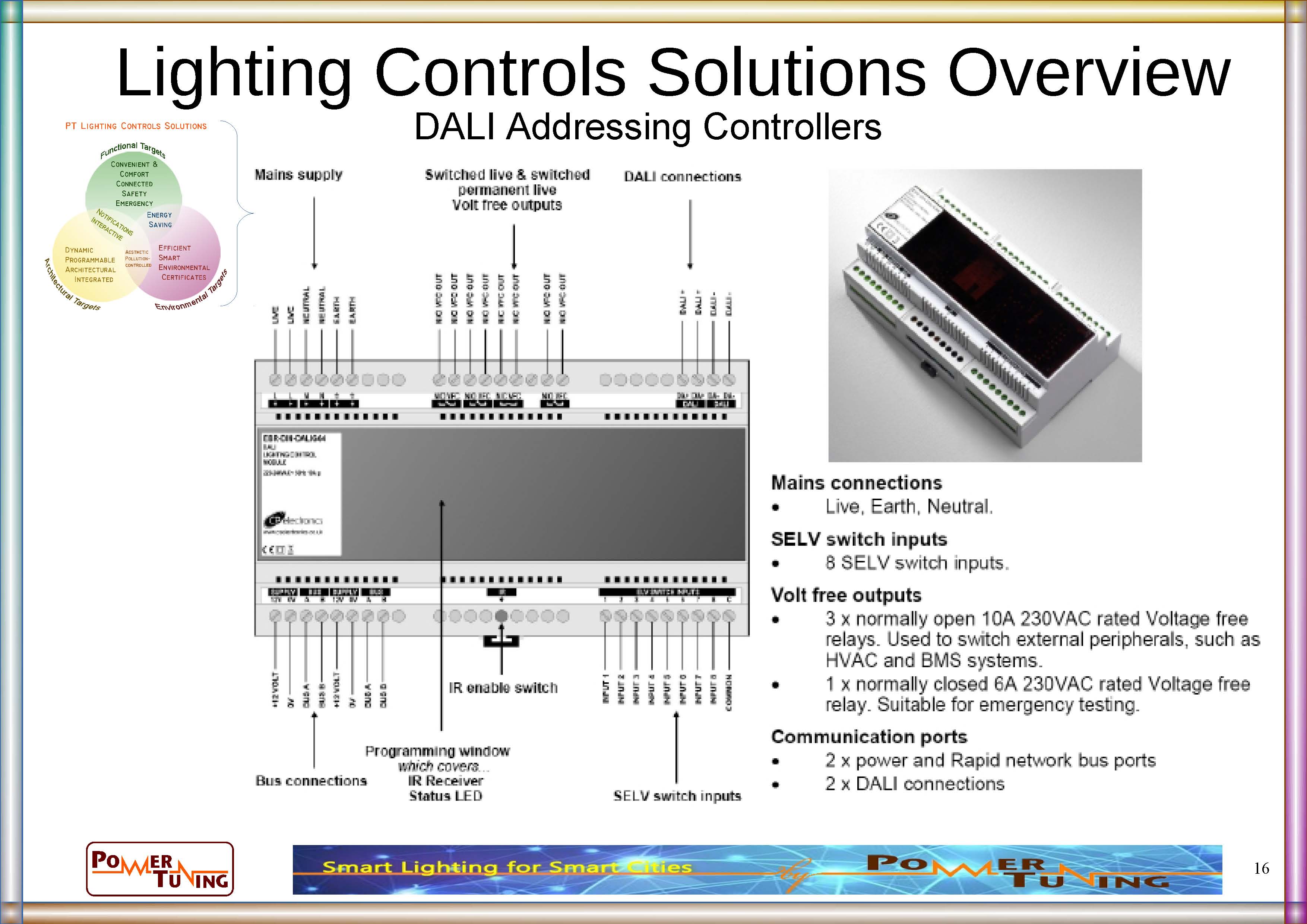

Key Features for RAPID DALI LCM Cpelectronics Legrand

4- Sample of using DALI LCM in a Multi-Purpose Hall

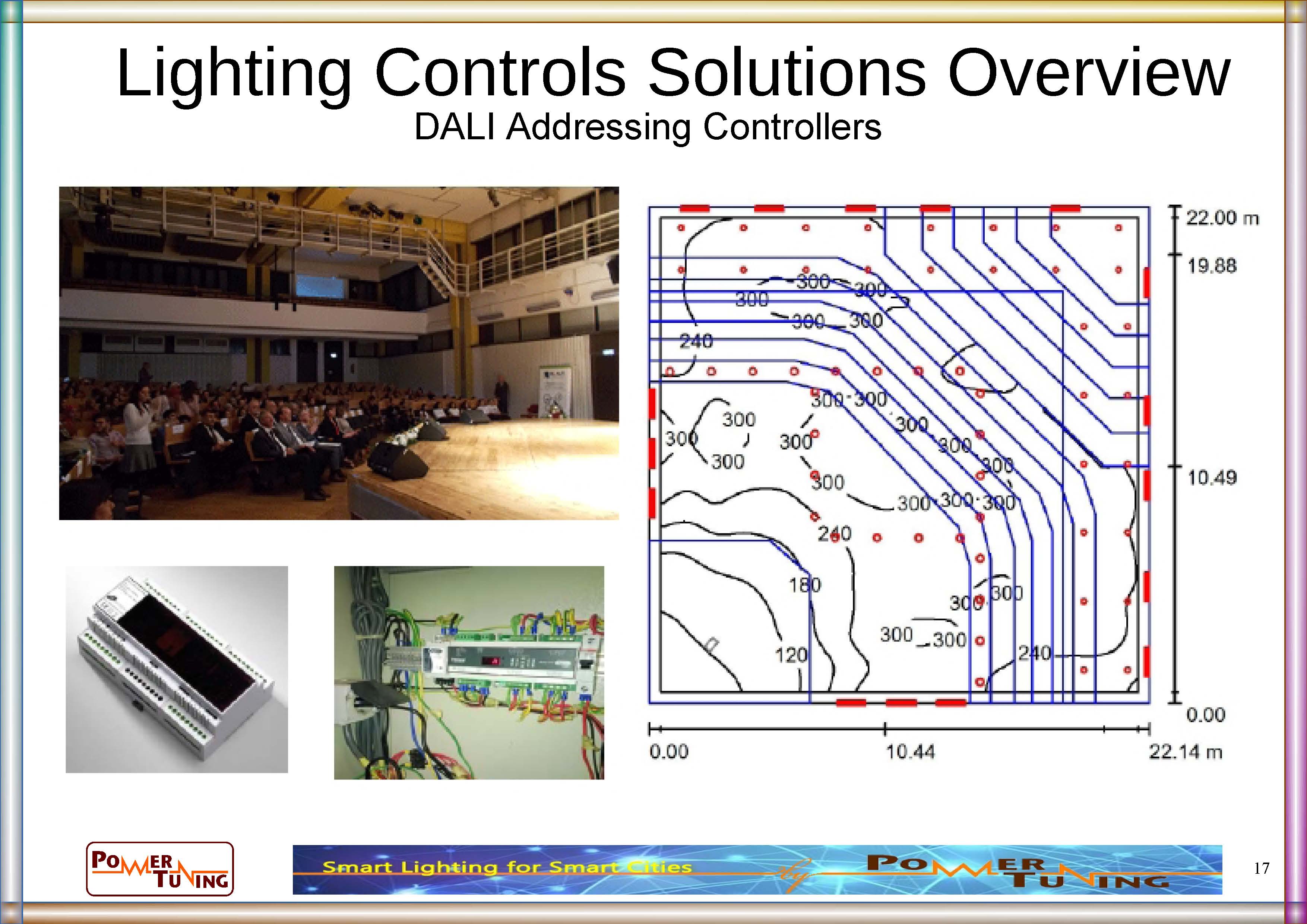

DALI LCM used in multi-purpose hall

5- Link for Supplier's Product Page
